ANROT IMU / VRU / AHRS

ANROT IMU Selection Overview

Choose by deployment and package first: rugged IP68, IP68, SMD, or wireless.

Product Table

Category	Representative models	Interfaces	Best fit	Comparison
Industrial / Salt-mist Resistant IP68 Salt-mist resistant IP68 housing; 4-array / 8-array reduction	HI14R3 Salt-mist Resistant IP68 Industrial 9-axis Attitude Sensor HI14R5 Salt-mist Resistant IP68 Industrial 9-axis Attitude Sensor	RS485 Modbus CANopen CAN-J1939	AGV / AMRSmart AgricultureOutdoor RoboticsHeavy-duty Equipment	Enter
Industrial / IP68 Housing IP68 housing; 4-array / 8-array precision comparison	CH104 IP68 Industrial 9-axis Attitude Sensor CH108 IP68 High-precision 9-axis Attitude Sensor	USB CANopen RS232	Industrial VehiclesOutdoor SystemsLogistics RoboticsAgricultural Robots	Enter

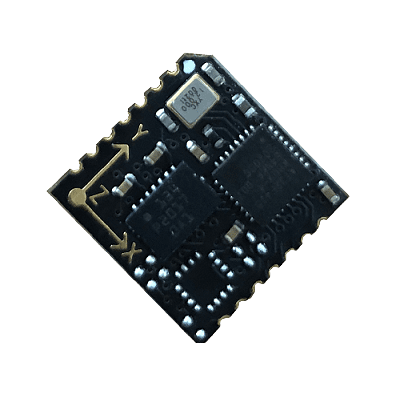

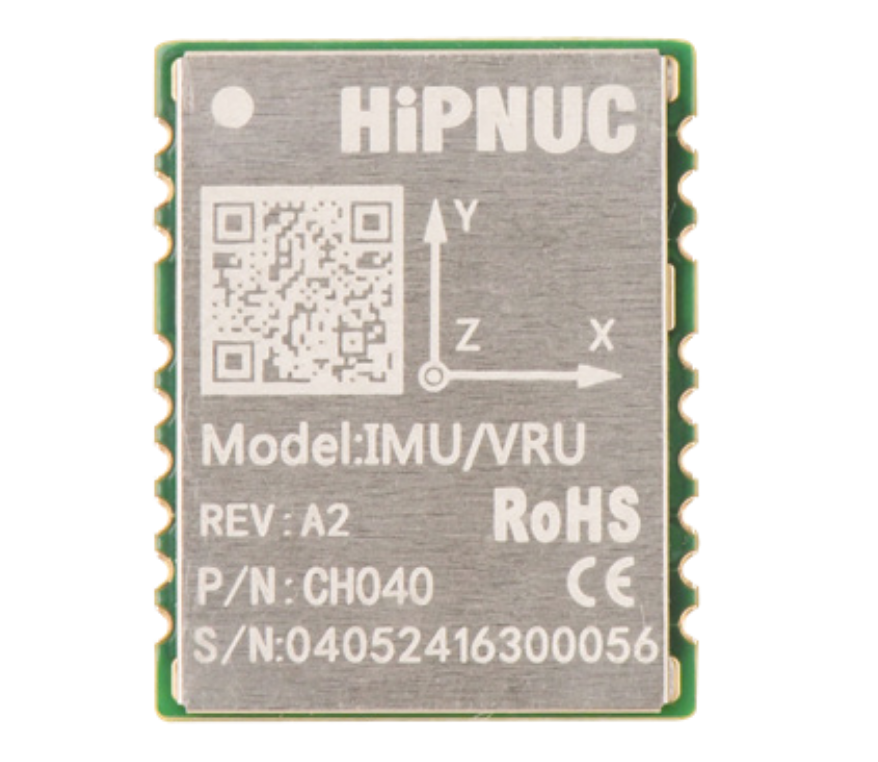

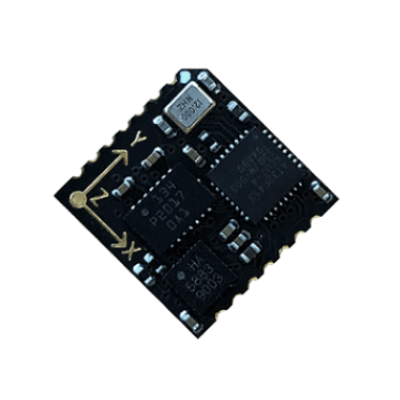

SMD / Stamp-hole / Embedded SMD / stamp-hole package; 6-axis / 9-axis	CH040 9-axis Embedded Attitude Sensor HI226 6-axis Mini IMU / VRU HI229 9-axis Mini IMU / VRU / AHRS	UART Micro-USB UART TTL 1.8V to 5.0V Optional USB evaluation board	Embedded ControllersCompact RobotsSynchronized Sensor NodesAR / VR Prototypes	Enter

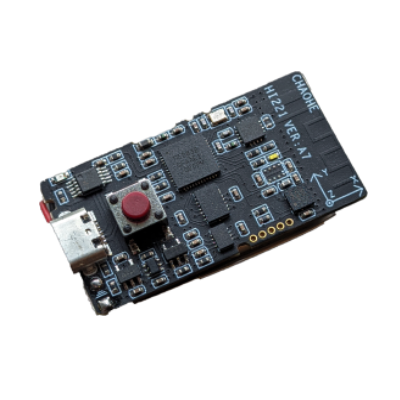

Wireless / Motion Capture Wireless star-network; up to 15 nodes	HI-221 Inertial Sensor Module	wireless USB receiver up to 15 nodes within 20 meters line of sight Micro-USB	Motion CaptureHuman Motion AnalysisWireless Multi-node SyncResearch Measurement	Enter
