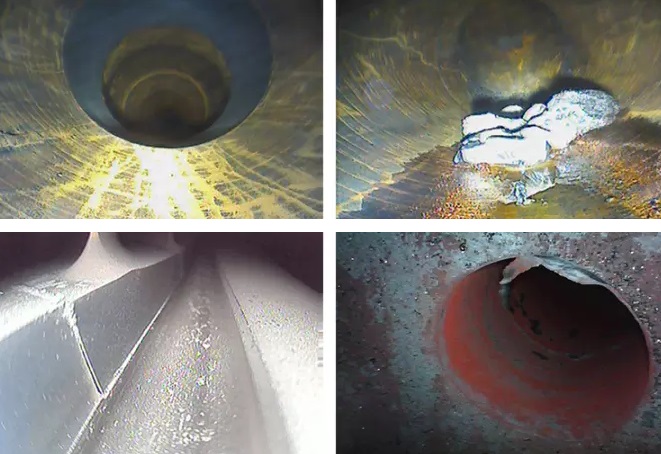

Application scenarios
OT-25 is designed for underground pipelines, tunnels, drainage channels, and culverts where regular inspection is required but direct human entry is difficult or unsafe.

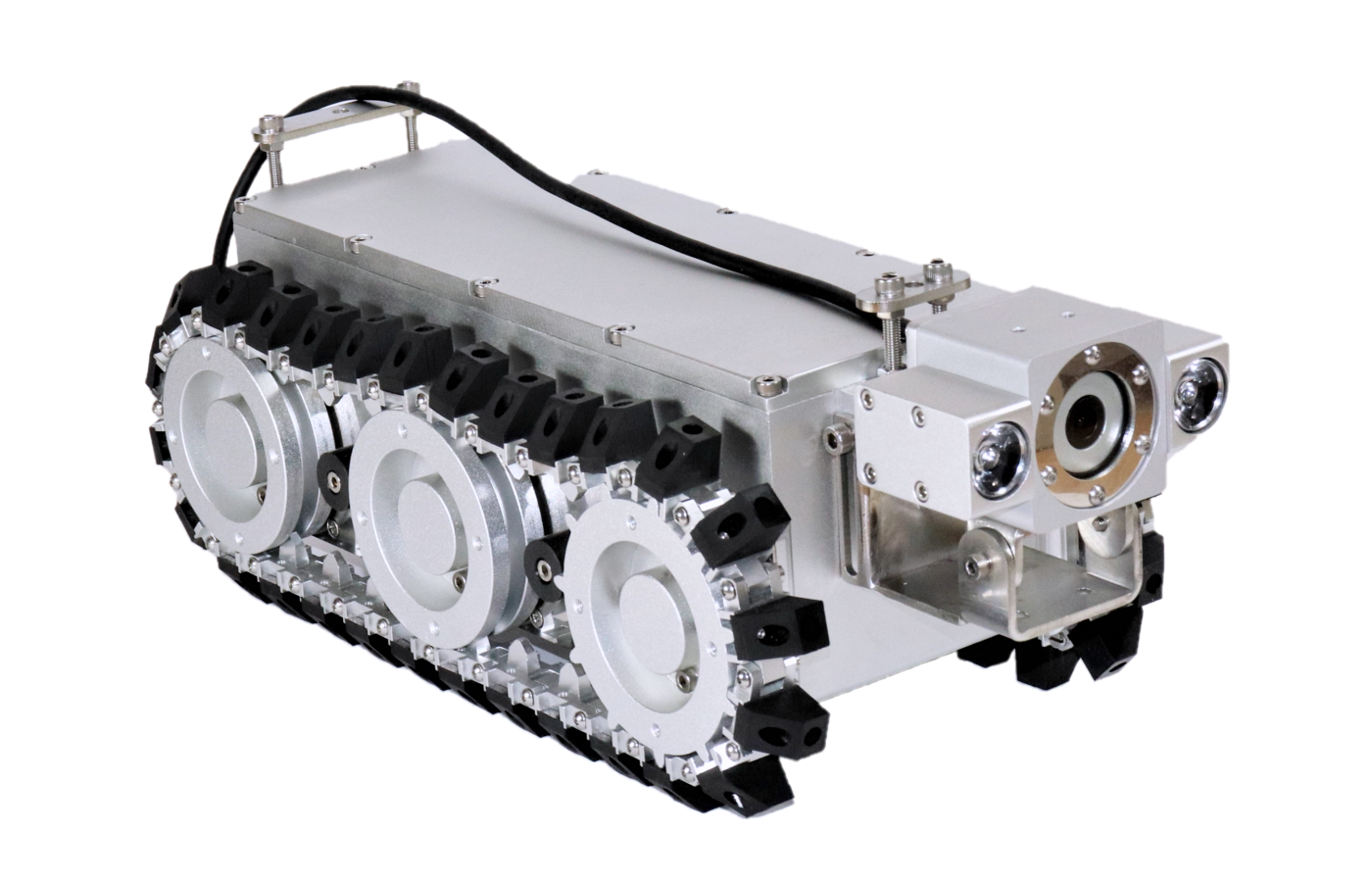

Ottoway OT-25 Pipeline Inspection Robot
Industrial inspection platform for sewers, culverts, and confined pipes with HD video, portable control, and customizable sensor payloads.
- Control Distance
-
- 100 to 500 meters
- Video Resolution
-
- 720P / 1080P
- Travel Speed
-
- 0.5 km per hour
- Sensor Options
-
- angle
- acceleration
- distance
- gas sensing
- Protection
-
- 5 bar or higher
Product Overview
Waterproof off-road capability

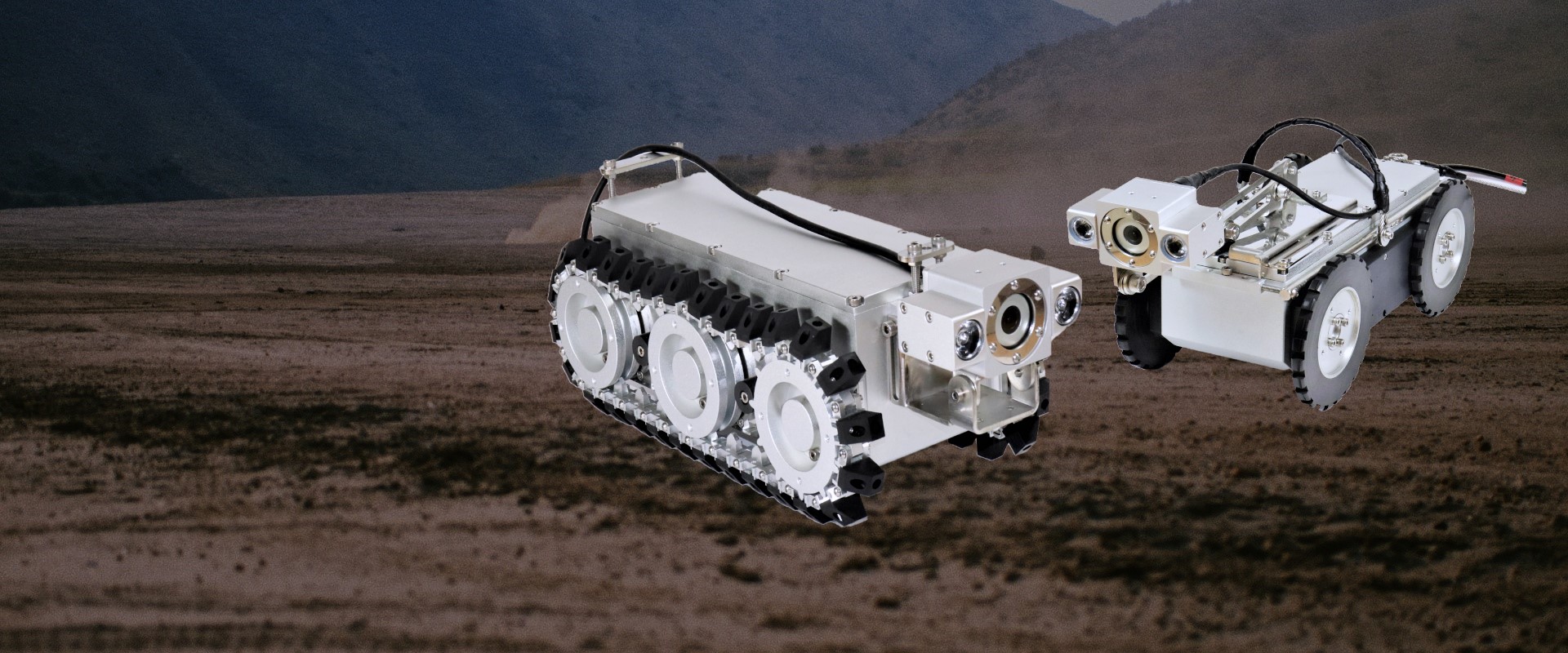

The 5 bar or higher waterproof specification and high-power motors help the platform move through water, oil, stones, mud, and other debris, with wheel and crawler variants available for different terrain conditions.

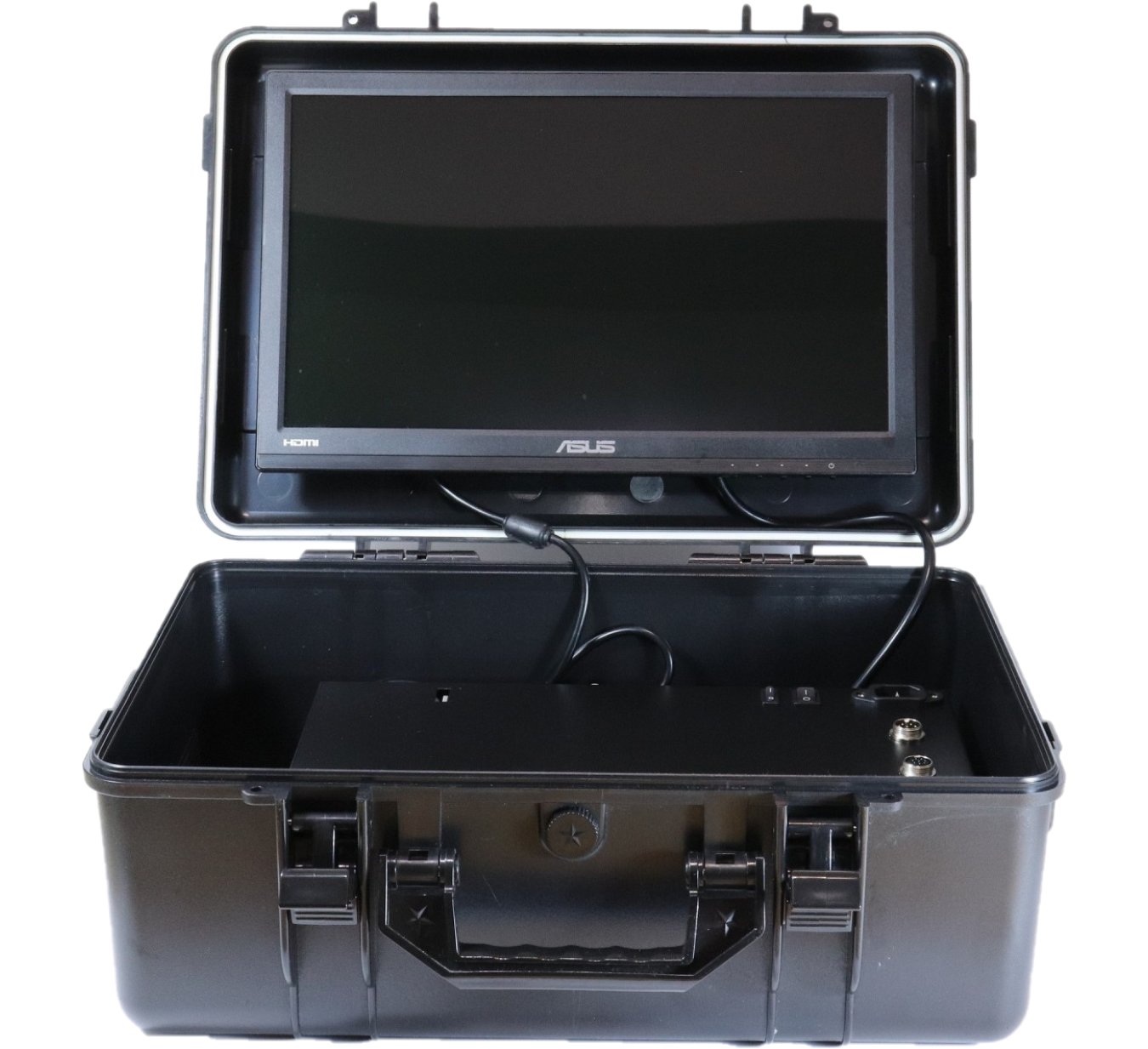

Portable control box
A portable control box combines recording, driving, and viewing with a Full HD display, joystick interface, embedded computer, and local storage for field work.
Video and project customization
The robot can capture up to 1080P video while layering angle, acceleration, distance, and gas data, making it suitable for project-based inspection systems rather than a fixed one-size-only product.
Specifications
| Control Distance | 100 to 500 meters |
|---|---|
| Video Resolution | 720P / 1080P |
| Travel Speed | 0.5 km per hour |
| Sensor Options |
|
| Protection | 5 bar or higher |
| Drivetrain Options |
|
Product Images
- OT25 Demo 1
- OT25 Demo 2
- OT25 Demo 3
