Four-channel amplifier module
SL-AA40x4 brings higher output power and four audio channels into a compact module, which reduces integration work for multi-speaker or zone-based playback systems.

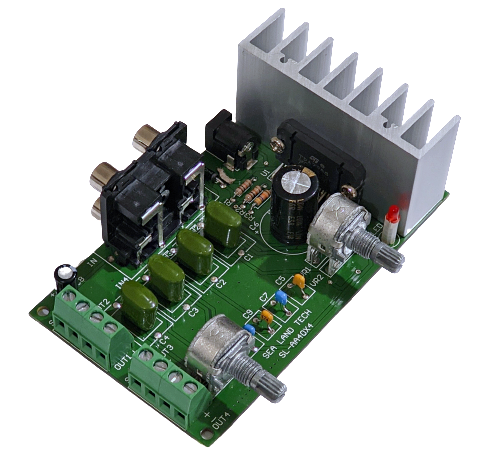

SL-AA40x4 40W AB Class 4-channel Power Amplifier
A single-board four-channel power stage for distributed commercial, vehicle, and multi-speaker audio systems.
- Output Power
-
- 40W x 4 at 4 ohm THD less than 10 percent
- Frequency Range
-
- 20 Hz to 20 kHz
- Load Impedance
-
- 4 ohm / 8 ohm
- Power Supply
-
- 8V to 18V DC, 12V recommended
- Working Temperature
-
- -40C to 85C
Product Overview
Integration targets
Typical targets include kiosks, vehicle audio, hospitality sound systems, public address devices, and other projects that need several output channels from one board.
B2B supply fit
The module is positioned for repeatable production use where stable sourcing and predictable mechanical constraints matter more than feature experimentation.
Specifications
| Output Power | 40W x 4 at 4 ohm THD less than 10 percent |
|---|---|
| Frequency Range | 20 Hz to 20 kHz |
| Load Impedance | 4 ohm / 8 ohm |
| Input Impedance | 20 kohm |
| Working Temperature | -40C to 85C |
| Voltage Gain | 26 dB |
| Power Supply | 8V to 18V DC, 12V recommended |
| Peak Output Current | 4.5 A |
| Supply Voltage Rejection | 65 dB |
| Audio Input | 4-channel RCA terminal |
| Audio Output | 4-channel green terminal socket |
| Volume Control | 1 knob |
| Power Connector | Blue terminal x1 |
| Dimensions | 110 x 65 x 38 mm |
